Pipe Wall Thickness Chart

Pipe wall thickness chart is a must-have item for me as process engineer. I usually use it when I have to size pipe, do hydraulic analysis, etc. Information I need from the chart are mostly outside diameter and inside diameter of particular pipe size.

In this post I want to share you pipe wall thickness chart based on ASME B36.19M-2004 Stainless Steel Pipe.

In this chart you can extract data of

  • Outside diameter and wall thickness in inch and mm
  • Pipe size is expressed in NPS (Nominal Pipe Schedule) and DN (Diametre Nominal)
  • Weight in pound per linear foot or kilogram per meter

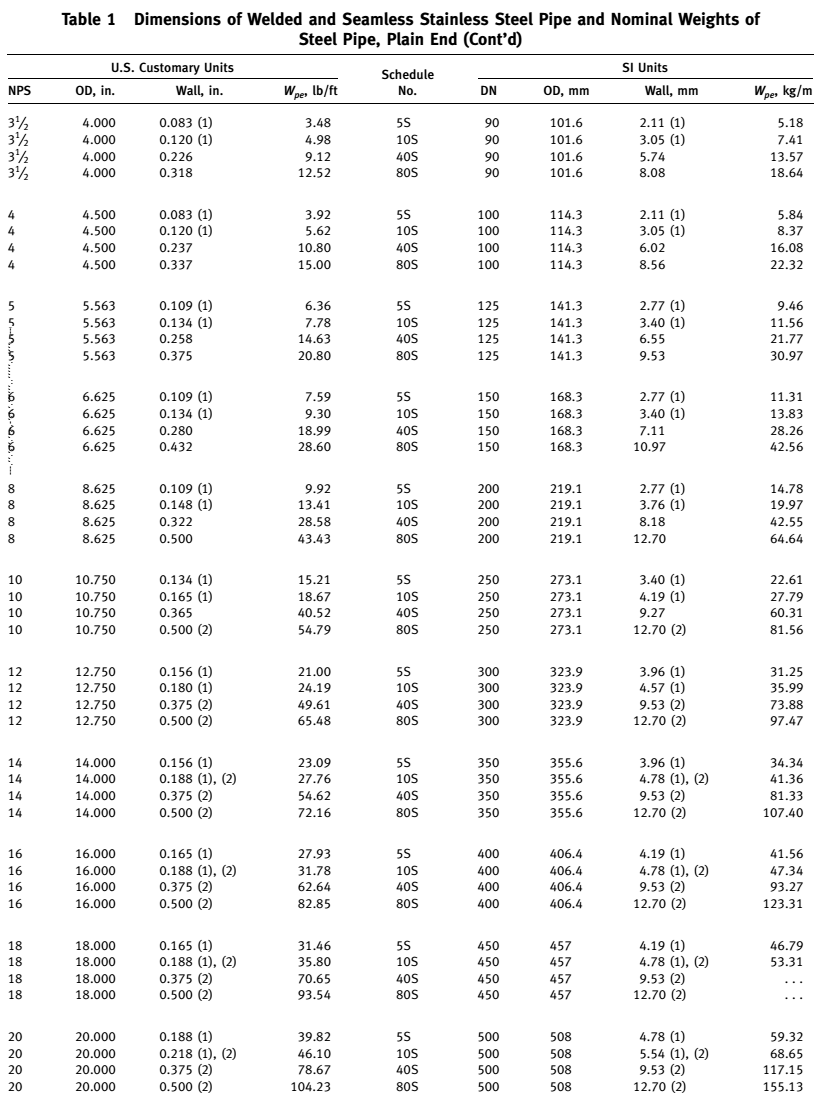

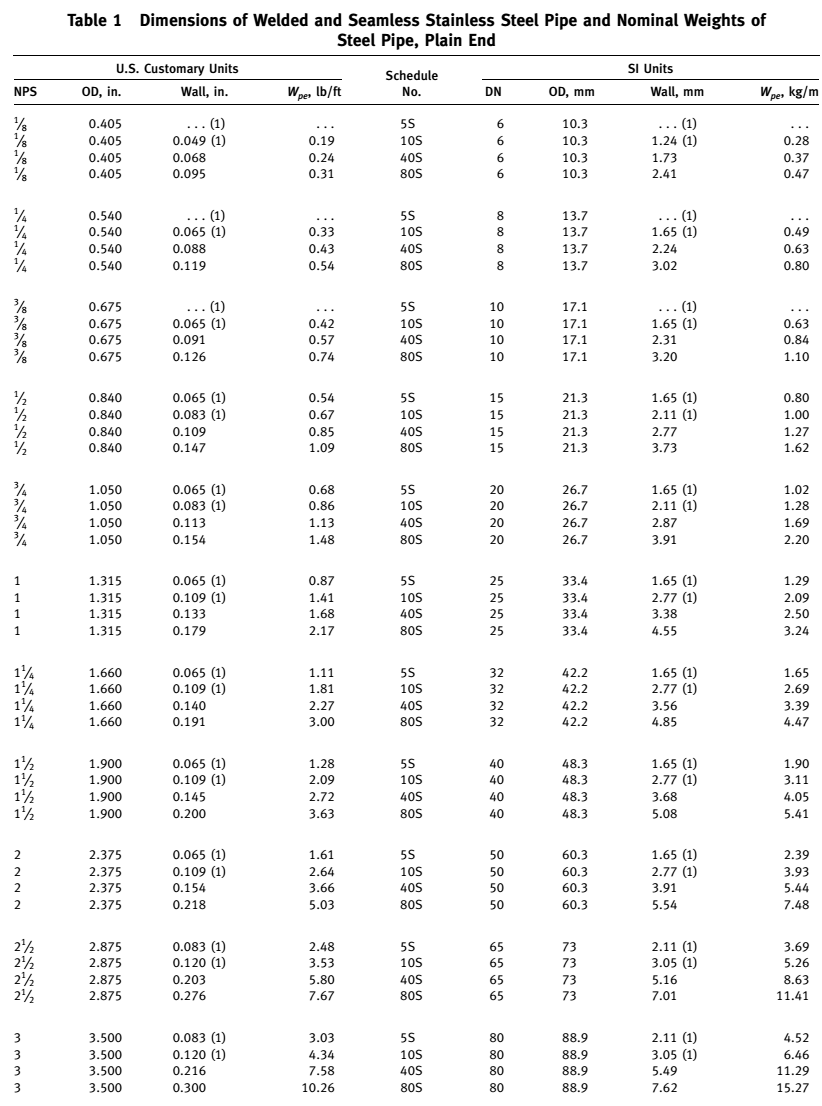

Pipe wall thickness chart 1



Pipe wall thickness chart-2

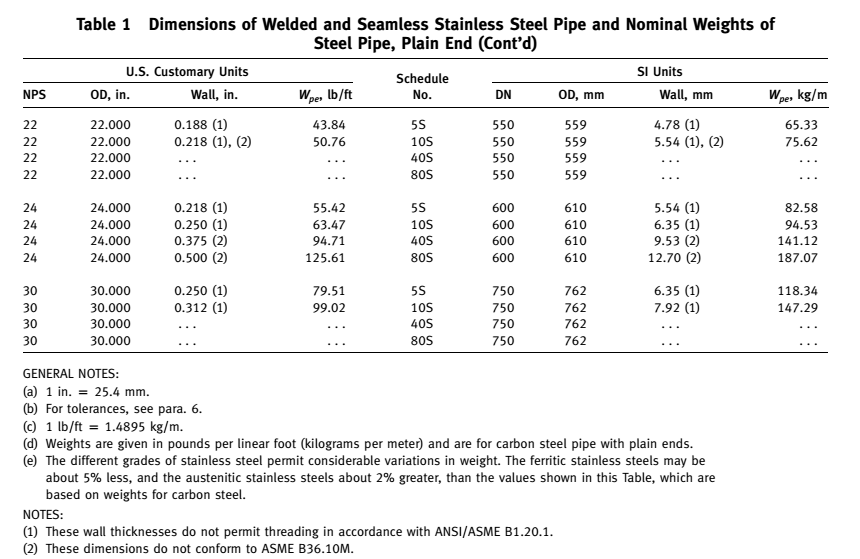

Pipe wall thickness chart-3

Reference:

ASME B36 19M 2004
